Features

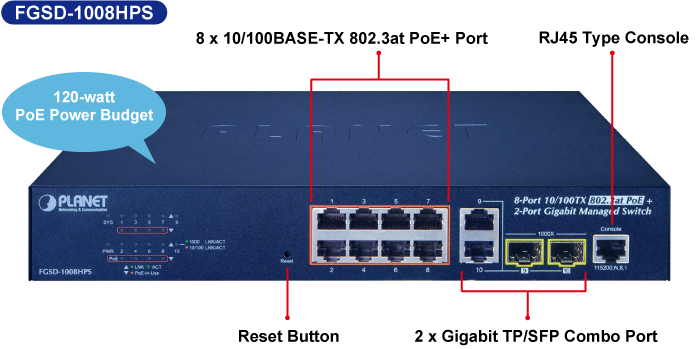

• 8 10/100BASE-TX RJ45 copper ports with IEEE 802.3at/af PoE+ injector function
• 2 10/100/1000BASE-T Gigabit RJ45 copper ports
• 2 100/1000BASE-X mini-GBIC/SFP slots, shared with port-9 to port-10
• Reset button for system factory default
• Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation, and auto MDI/MDI-X
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• Automatic address learning and address aging
• Supports CSMA/CD protocol
• Complies with IEEE 802.3at Power over Ethernet Plus
• Backward compatible with IEEE 802.3af Power over Ethernet
• Up to 8 ports of IEEE 802.3af/802.3at devices powered
• Supports PoE Power up to 30 watts for each PoE port
• 120-watt PoE budget
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 250m via extend mode
• PoE Management
• Intelligent PoE features
