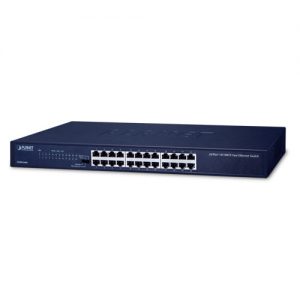

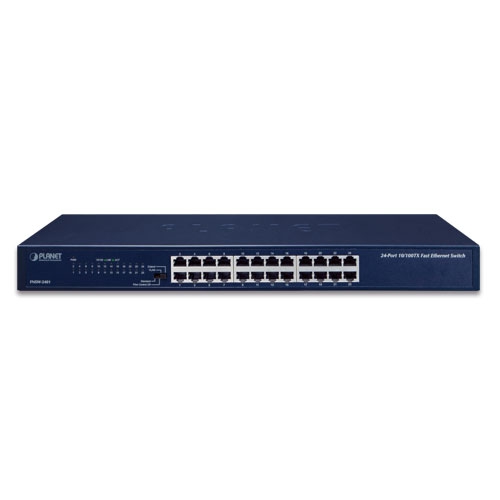

24-Port 10/100BASE-TX Fast Ethernet Switch


Physical Port

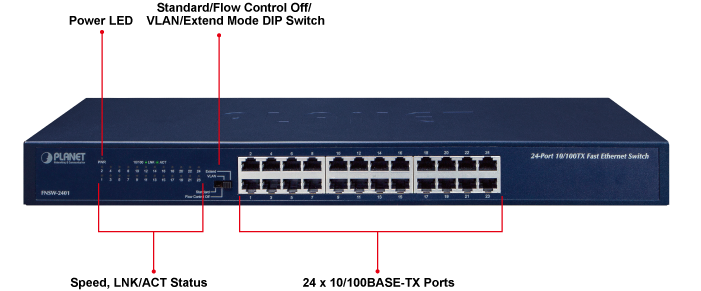

  • 24 10/100BASE-TX Fast Ethernet ports
  • Supports auto MDI/MDI-X function

Layer 2 Features

  • Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standards
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • Integrated address look-up engine, supporting 8K absolute MAC addresses
  • Power saving ability for Green networking
  • IEEE 802.1Q VLAN packet transparency support
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • Hardware-based 10/100BASE-TX, half/full duplex, flow control and auto-negotiation
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol

Hardware Features

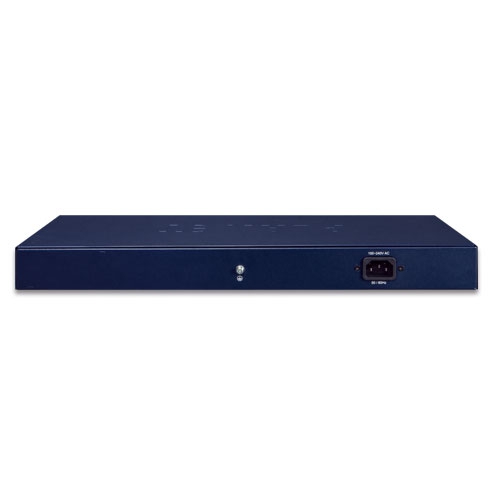

  • 100~240V AC, 0.2A, 50~60Hz universal power input

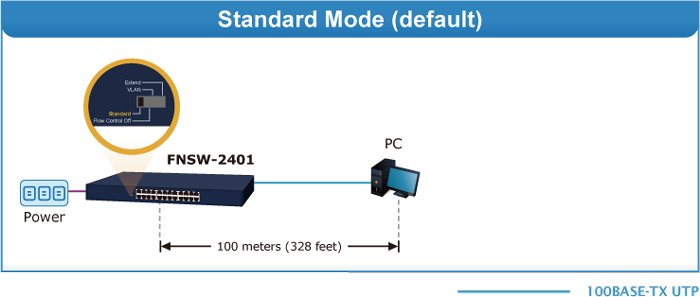

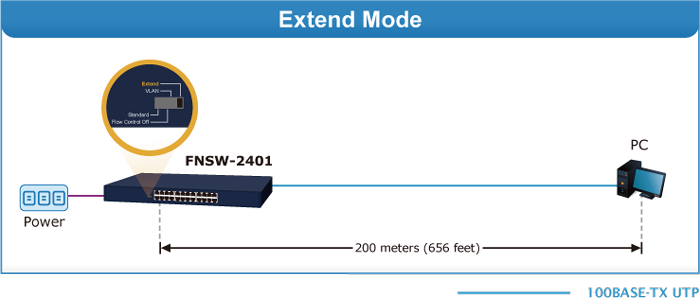

  • DIP switch for standard/flow control off/VLAN/Extend mode selection
  • FCC, CE Class A compliant
