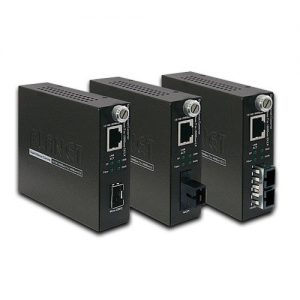

GST-80X Series

10/100/1000BASE-T to 1000BASE-SX/LX Smart Media Converter


  • Standards:
     - Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX Ethernet Standard
  • Interface:
     - One 10/100/1000Base-T port with RJ-45 connector
     - One 1000Base-SX/LX port with LC/SC/WDM connector supporting multi-mode or single-mode fiber optic cable
     - Auto-negotiation and Auto-MDI / MDI-X for 10/100/1000Base-T port
  • Layer 2 Features:
     - Back-pressure and IEEE 802.3x compliant flow control and full wire-speed forwarding rate
     - 9K Jumbo Frame size supported
     - Link Loss Return (LLR) switch on each fiber optic to aid in troubleshooting remote network connections
     - Link Loss Carry Forward (LLCF) work with LLR in diagnosing network connections
  • Smart Management:
     - Provides DIP switch for fiber (Auto-negotiation / Manual) and LFP function(Disable / Enable) setting
     - Manageable through Managed Media Converter Chassis System (MC-1600MR/MC-1610MR series)
     - Bandwidth control / TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test function provided with MC-1610MR / MC-1610MR48 Managed Media Converter Chassis System
  • Hardware:
     - Used as a stand-alone device or work with Managed Media Converter Chassis for up to 16 converter with redundant power supply for optional expansion use
     - LED indicators for converter status
     - Choice of fiber-connector from SC, LC, WDM, multi-mode / single-mode fiber / 1000Base-SX / LX mini GBIC module
     - EMI standards complies with FCC, CE class A
