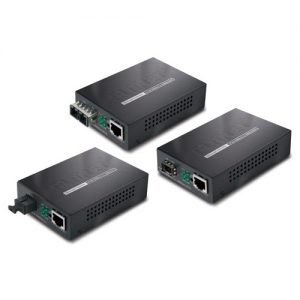

GT-90x Series

Managed Gigabit Ethernet Media Converter


  • Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/FX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-SX/LX
  • One-channel media conversion between 10/100/1000BASE-T and 1000BASE-SX / LX
  • TP port supports 10/100/1000BASE-T auto-negotiation and auto-MDI/MDI-X
  • 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m on GT-902
  • 1000BASE-LX: 9/125μm single-mode cable provides long distance for 10km on GT-902S
  • 1000BASE-LX WDM interface for up to 15km (single-mode fiber 9μm/125μm) on GT-906A15/B15
  • 1000BASE-LX WDM interface for up to 60km (single-mode fiber 9μm/125μm) on GT-906A60/B60
  • 1000BASE-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters
  • Compact size for working with PLANET MC family Media Chassis (MC-700/1000R/1500)
  • Wall-mountable hardware design
  • Built-in IP-based Web interface for remote management
  • Layer 2 Management Feature

  – Store-and-Forward mechanism
  – Built-in Web interface for remote management and setup
  – Manual IP address setting / DHCP client for IP address assignment
  – SNMP v1 / v2c monitor / private Enterprise MIB
  – Event trap and SNMP trap support
  – Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port
  – Supports Port Status / Ethernet Statistics on both TP and Fiber interface
  – Supports Maximum frame size to 16K bytes
  – Loop detection / Broadcast / Multicast / Unicast storm control
  – Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN
  – 802.1p Tag Priority / IP address priority / IP DSCP option in Quality of Service Mode and Strict Priority / Weighted Round

  • Robin (WRR) QoS policies

  – TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test
  – 16 TCP / UDP Filter groups
  – Password setting, IP setting and devices description setting through Planet Smart discovery utility
  – Firmware upgrade via remote Web interface

  • External DC 5V 2A power supply
  • LED indicators for easy network diagnosing
  • Reset Button at the front panel for the factory default reset
  • Choice of fiber-connector from SC, LC, WDM, multi-mode / single-mode fiber /1000Base-SX / LX mini GBIC module
