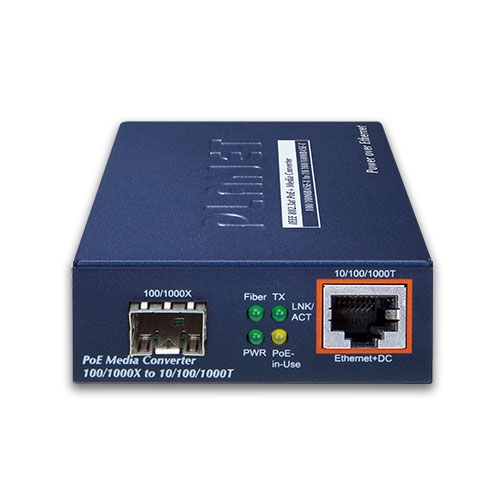

GTP-80x Series

100/1000BASE-X to 10/100/1000BASE-T PoE+ Media Converter



  • 1 RJ45 interface
  • – 1-Port Data + Power output
  • 1  fiber optic port
    – GTP-802: SC Fiber Interface
    – GTP-802S: SC Fiber Interface
    – GTP-805A: LC Fiber Interface
  • DC 52V power input socket


  • Complies with IEEE 802.3at Power over Ethernet Plus standard, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Provides DC 52V power over RJ45 Ethernet cable to devices with Ethernet port
  • Supports PoE Power up to 30 watts for PoE port
  • Auto detects IEEE 802.3at/IEEE 802.3af PoE equipment, protecting the devices from being damaged by incorrect installation
  • Remote power feeding up to 100m
  • IEEE 802.3at/IEEE 802.3af splitter devices compatibility


  • Metal case
  • LED indicators
  • Power LED

– PoE-in-use
– Fiber LNK/ACT

  • DIP switch: LFP (Link Fault Passthrough) mode selection
  • 9K maximum frame size supported

Standard Compliance

  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX/100BASE-FX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3z 1000BASE-X
  • IEEE 802.3af Power over Ethernet standard
  • IEEE 802.3at Power over Ethernet Plus Standard
  • FCC Part 15 Class A, CE
