IGS-801T

8-Port 10/100/1000T Industrial Gigabit Ethernet Switch (-40~75 degrees C operating temperature)

Physical Port

  • 8-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function

Layer 2 Features

  • Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standard
  • Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode
  • High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • 4K absolute MAC address and 16Gbps switching fabric support
  • 1.5Mbits SRAM packet buffer
  • 9K jumbo packet size support
  • IEEE 802.1p CoS support
  • Automatic address learning and address aging
  • CSMA/CD Protocol

Industrial Case and Installation

  • IP30 metal case
  • DIN rail and wall-mount design

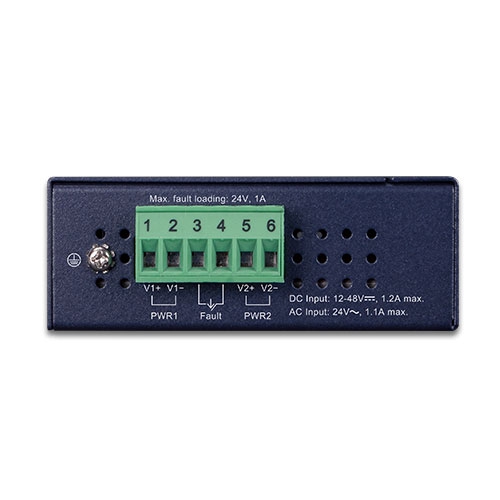

  • 12 to 48V DC, redundant power with polarity reverse protect function and connective, removable terminal block for master and slave power; 24V AC power support
  • -40 to 75 degrees C operating temperature
Dimension
