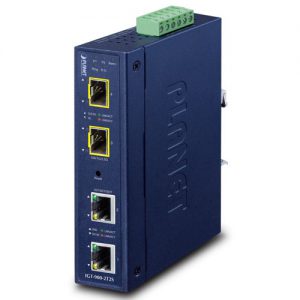

IGT-900-2T2S

Industrial 2-Port 10/100/1000T + 2-Port 100/1000/2500X SFP Managed Media Converter

Feature

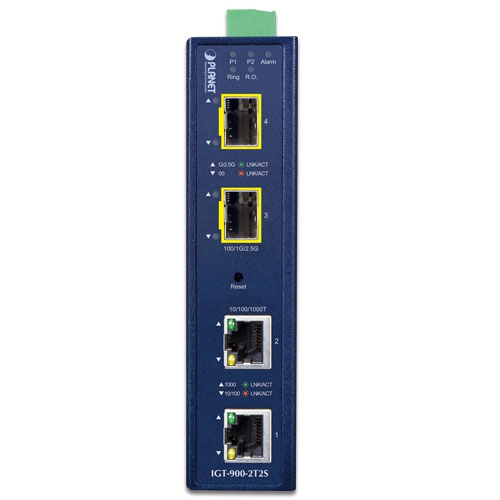

Physical Port

  • 2 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
  • 2 100/1000/2500BASE-X SFP ports for SFP type auto detection

Industrial Protocol

  • Modbus TCP for real-time monitoring in the SCADA system
  • IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode

Industrial Case and Installation

  • IP30 metal  case
  • DIN-rail or wall-mount design

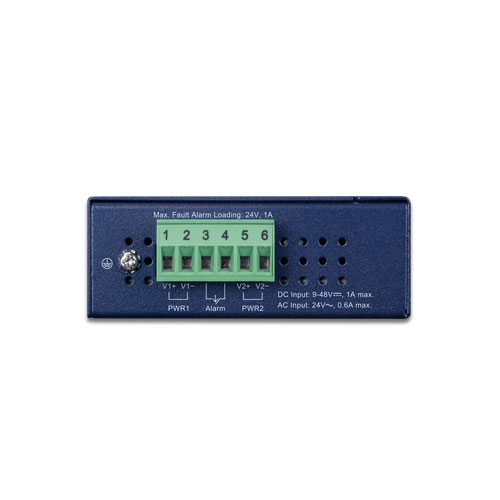

  • 24V AC, 9~48V DC, redundant power with reverse polarity protection
  • Supports 6KV DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature

Layer 3 IP Routing Features

  • Supports maximum 32 static routes and route summarization
  • Routing interface provides per VLAN routing mode

Layer 2 Features

  • Storm Control support
    • Broadcast/Multicast/Unicast
  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
    • Private VLAN Edge (PVE)
    • Port Isolation
    • MAC-based VLAN
    • IP Subnet-based VLAN
    • Protocol-based VLAN
    • VLAN Translation
    • Voice VLAN
    • GVRP
  • Supports Spanning Tree Protocol
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
    • BPDU Filtering/BPDU Guard
  • Supports Link Aggregation
    • 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
    • Maximum 6 trunk groups with 4 ports per trunk group
    • Up to 2Gbps bandwidth (duplex mode)
  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
  • Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  • Link Layer Discovery Protocol (LLDP)
  • IEEE 802.3ah OAM

Link Fault Passthrough (LFP)

  • The IGT-900-1T1S supports one group (TP Port 1 and SFP Port 2) LFP function.
  • The IGT-900-2T2S supports two groups (TP Port 1 and SFP Port 3, TP Port 2 and SFP Port 4) LFP function.

Port Backup

  • The IGT-900-2T2S supports two backup groups.

Quality of Service

  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
    • IEEE 802.1p CoS
    • IP TOS/DSCP/IP precedence
    • IP TCP/UDP port number
    • Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic-policing on the switch port
  • DSCP remarking

Multicast

  • Supports IPv4 IGMP snooping v1, v2 and v3
  • Supports IPv6 MLD snooping v1 and v2
  • Querier mode support
  • IPv4 IGMP snooping port filtering
  • IPv6 MLD snooping port filtering
  • MVR (Multicast VLAN Registration)

Security

  • Authentication
    • IEEE 802.1x port-based/MAC-based network access authentication
    • Built-in RADIUS client to co-operate with the RADIUS servers
    • TACACS+ login users access authentication
    • RADIUS / TACACS+ users access authentication
    • Guest VLAN assigns clients to a restricted VLAN with limited services
  • Access Control List
    • IP-based Access Control List (ACL)
    • MAC-based Access Control List
  • Source MAC/IP address binding
  • DHCP Snooping to filter un-trusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder

Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
    • Web switch management
    • Telnet Command Line Interface
    • SNMP v1 and v2c switch management
    • SSHv2, TLSv1.2 and SNMP v3 secure access
  • SNMP Management
    • Four RMON groups (history, statistics, alarms, and events)
    • SNMP trap for interface Link Up and Link Down notification
  • IPv6 IP Address/NTP/DNS management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
    • Firmware upload/download via HTTP
    • Reset button for system reboot or reset to factory default
    • Dual Images
  • DHCP Relay and DHCP Option82
  • DHCP Server
  • User Privilege levels control
  • NTP (Network Time Protocol)
  • UPnP
  • Network Diagnostic
    • ICMPv6/ICMPv4 Remote Ping
    • Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
    • SFP-DDM (Digital Diagnostic Monitor)
  • SMTP, Syslog and SNMP trap remote alarm
  • Local system Log
  • PLANET Smart Discovery Utility for deployment management
  • PLANET NMS system and CloudViewer for deployment management
