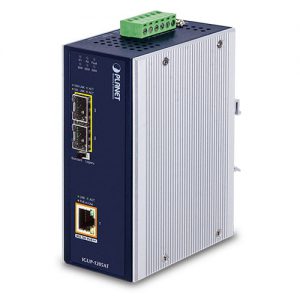

IGUP-1205AT

Industrial 2-Port 100/1000X SFP to 1-Port 10/100/1000T 802.3bt PoE++ Media Converter

Feature

Physical Port

  • 1-port 10/100/1000BASE-T RJ45 with IEEE 802.3bt PoE Injector function
  • 2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver dual mode

Power over Ethernet

  • Complies with IEEE 802.3af/at/bt PoE Plus end-span PSE
  • 1 IEEE 802.3af/at/bt device powered
  • Supports PoE Power up to 95 watts for PoE port
  • Provides DC 54V power over RJ45 Ethernet cable to PD with Ethernet port
  • Auto-detects IEEE 802.3bt equipment and protects devices from being damaged by incorrect installation
  • Remote power feeding up to 100m
  • IEEE 802.3af/at/bt splitter devices compatible

Layer 2 Features

  • Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode on RJ45 port
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)

Hardware

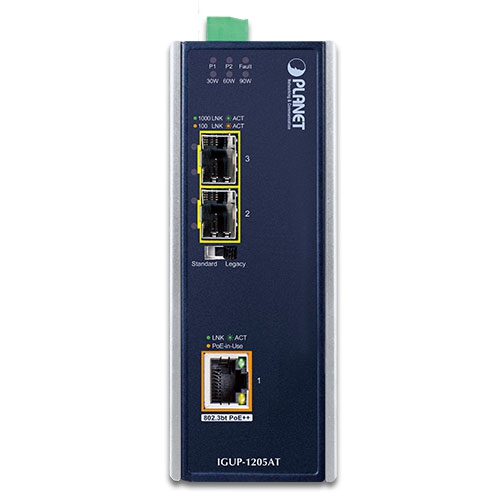

  • LED Indicators
  • System: Power 1, Power 2, Fault and PoE usage
  • Fiber port: LNK/ACT
  • 10/100/1000BASE-T port: LNK/ACT, PoE-in-use
  • DIP switch: Standard/Legacy mode selection

Industrial Case and Installation

  • IP30 metal case
  • DIN-rail and wall-mount designs

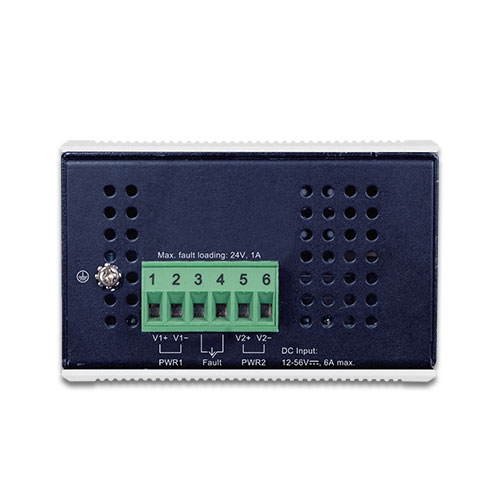

  • 12 ~ 56V DC redundant power with reverse polarity protection and connective removable terminal block for master and slave power
  • Supports 6000 VDC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
