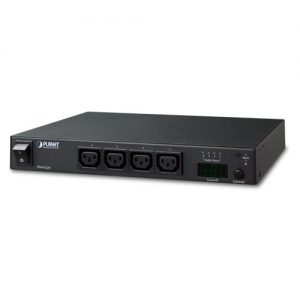

IPM-4220

IP-based 4-port Switched Power Manager

Features

Hardware

  • Desktop size design
  • IEC outlet models
  • 4 power outlets that support real-time current image monitoring
  • 4 LEDs show power status for each power outlet
  • LCD panel displays current, max. alarm and network information
  • Buzzer will ring when total power consumption value exceeds set value
  • Circuit breaker can avoid damage that is caused by overload
  • Versatile sensors supported through environmental sensor box (ESB) inputs


Power Distribution

  • Maximum Amps/Inlet: IEC 16A for 1 inlet
  • Maximum Amps for 4 Outlets: IEC 16A for 4 outlets
  • Full Frequency Range: 50~60Hz
  • Supports multiple power control methods – Wake on LAN, System After AC Back, Kill the Power


Remote Access

  • Remote power control via TCP/IP and a built-in 10/100Mbps Ethernet port
  • Multi browsers support (IE, Google, Firefox, Safari, Opera, Netscape)


Management

  • Provides Install Wizard to ease users’ setting of parameters
  • Events notification by sending pop-up message, trap, SMS or e-mail
  • Supports Management Information Base (MIB) files for SNMP
  • Naming support for outlets
  • Power-on sequencing intelligently turns on/off devices based on event occurrence or planned schedule
  • Voltage, current, wattage and total kWh report
  • Sets over-current watchdog for power outlet
  • External UPS can be installed for a possible power outage


Security

  • Web page supports 1024-bit SSL security encryption transmission
  • Supports Secure Socket Layer V3 and Secure Shell V1 protocols
  • Administrator and multiple users with password protection for double-layer security
  • IP Filtering — Address-specific IP security masks to prevent unauthorized access
