TMX

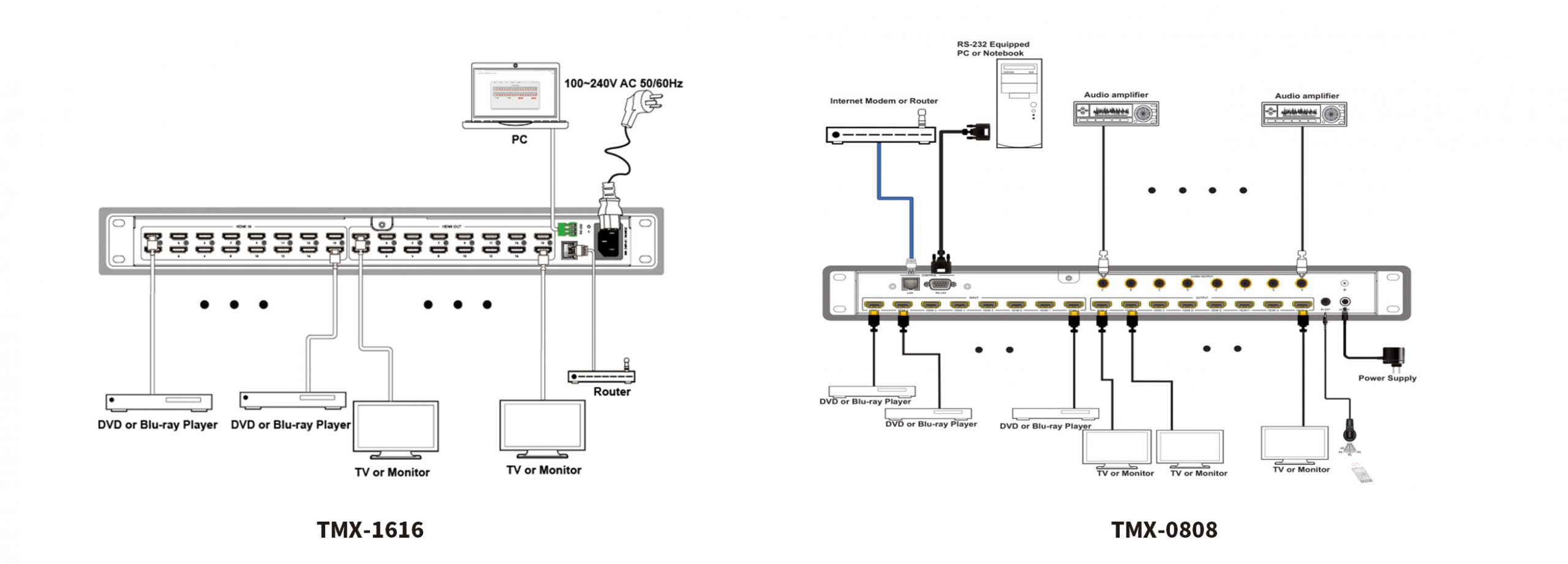

TMX series products varies depending on the numbers of interface. TMX-XHA has the function of seperated audio and video transmission. TMX-XH HDMI 4×4 matrix switcher features four HDMI inputs and four HDMI outputs. It is a HDMI routing matrix. It supports the transmission of video (resolutions up to 2160p@60Hz Ultra HD 4:4:4) and supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. It works with Blue-Ray players, Set-Top boxes, Home Theater PCs, and game consoles. Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or the selection buttons on the front panel.This device supports all HDMI 3D formats.

Datasheet
Manual
Firmware

Feature

  • Support HDMI2.0, HDCP2.2/HDCP1.4
  • Support video format up to 4k2k@60Hz with 24bit RGB/ YCbCr 4:4:4/YCbCr 4:2:2, and up to 4k2k@60Hz with 12bit YCBCR 4:2:0
  • Support color space conversions among RGB, YCbCr4:4:4, YCbCr4:2:2 and xvYCC video formats
  • Support all HDMI 3D formats up to 2160p@30
  • Support high resolution VESA mode video format up to QSXGA@60Hz
  • HDMI embedded audio support the format such as PCM up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS and HBR
  • Support simultaneous HDMI Coax and L/R audio outputs
  • Support smart EDID management
  • Support RS-232, remote control, on-panel control and TCP/IP
