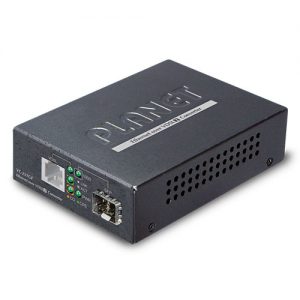

VC-231GF

1-Port 1000BASE-X SFP + 1-Port RJ11 VDSL2 Converter
Datasheet
Application
Firmware

Features

Physical Ports

    • One 1000BASE-X SFP interface
    • 1 RJ11 connector for xDSL port with VDSL2 connection

VDSL2 Features

    • VDSL2 stand-alone transceiver for simple bridge modem application
    • Cost-effective bridge function to connect two Ethernet LANs
    • Up to 150/150Mbps bandwidth (in G.INP, Sym, 8dB mode)

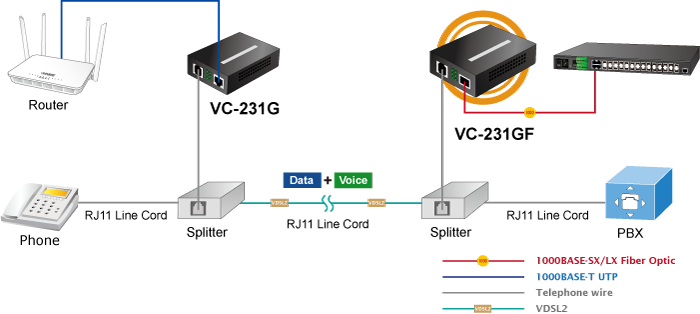

    • Voice and data communication can be shared simultaneously based on the existing telephone wire with distance up to 1.4km
    • ITU-T G.993.2 VDSL2 standard
    • ITU-T G.993.5 G.Vectoring and G.INP
    • DMT-based coding technology
    • CO/CPE mode selectable via DIP switch
    • Selectable target band plan (symmetric and asymmetric) and SNR margin
    • Supports IEEE 802.1Q VLAN tag transparency

Hardware and Installation

    • Compact size, wall-mountable design; ideal solution for space-limited locations
    • Advantage of minimum installation time (Simply by Plug and Play)
    • Metal case, good for heat sinking
    • Supports extensive LED indicators for network diagnosis
    • Additional POST splitter to share voice and data
    • Supports 6KV DC Ethernet ESD protection
