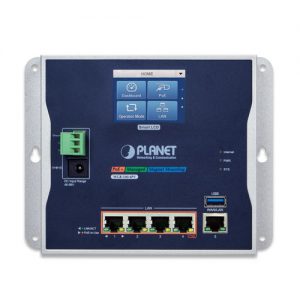

WGR-500-4PV

Industrial Wall-mount Gigabit Router with 4-Port 802.3at PoE+ and LCD Touch Screen

Physical Port

  • 4-port 10/100/1000BASE-T RJ45 with IEEE 802.3af / 802.3at PoE injector
  • 1-port 10/100/1000BASE-T RJ45 for WAN port or LAN port interface (router mode or switch mode)
  • 1 x USB 3.0 port for backup and restoration of configuration file

Power over Ethernet

  • Up to 4 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Remote power feeding up to 100 meters
  • PoE Management
  • – PoE Port status monitoring
    – Total PoE power budget control
    – Per port PoE function enable/disable
    – PoE Port power feeding priority
    – Per PoE port power limit
    – PD classification detection
    – PoE alive check

Industrial Case and Installation

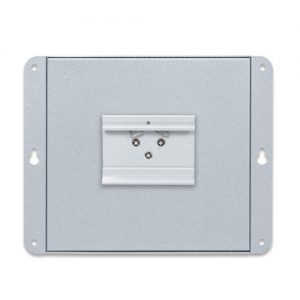

  • Compact size with fixed wall mounting, magnetic wall mounting or DIN-rail mounting
  • IP30 metal case
  • Supports -10 to 60 degrees C operating temperature
  • Supports ESD 6KV DC Ethernet protection
  • Dual power input design
  • – 48V~56V DC wide power input with polarity reverse protect function
    – 3-pin terminal block or DC jack connector

Layer 2 Features

  • Supports IEEE 802.1Q tagged VLAN
  • Supports IEEE 802.1D Spanning Tree Protocol (STP)

Layer 3 IP Routing Features

  • IPv6 support
  • WAN Internet types: Dynamic IP(DHCP Client), static IP, PPPoE, L2TP, PPTP
  • Static and dynamic (RIP1 and 2) routing
  • Supports Port Forwarding, DMZ, and UPnP for various networking applications
  • IP/MAC-based bandwidth control
  • Supports Dynamic DNS and PLANET DDNS

Security

  • Port filtering lets you either allow or prevent which application can access the Internet.
  • MAC filtering allows you to include or exclude computers and devices based on their MAC address
  • URL filtering allows you to control access to Internet websites in an URL list
  • IP source guard prevents IP spoofing attacks
  • DoS attack prevention

Management

  • Management Interfaces
  • – 2.4-inch color LCD touch screen
    – Web GUI management
  • Static and DHCP for IP address assignment
  • System Maintenance
  • – Firmware upload/download via HTTP
    – Hardware reset button for system reboot or reset to factory default
  • NTP Network Time Protocol
  • Event message logging to remote syslog server
  • PLANET Smart Discovery Utility for deployment management
