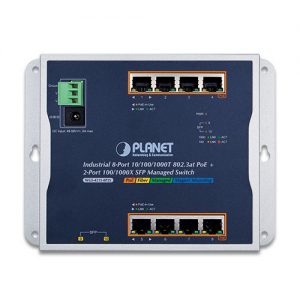

WGS-4215-8P2S

Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Wall-mount Managed Switch (-40~75 degrees C)

Physical Port

  • 8 10/100/1000BASE-T Gigabit RJ45 copper ports with IEEE 802.3at PoE+ injector function
  • 2 100/1000BASE-X mini-GBIC/SFP ports

Power over Ethernet

  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • 200-watt PoE budget
  • Supports PoE power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters in standard mode and 250m in extend mode
  • PoE management
    • Total PoE power budget control
    • Per port PoE function enable/disable
    • PoE port power feeding priority
    • Per PoE port power limitation
    • PD classification detection
    • PD alive check
    • PoE schedule

Industrial Case and Installation

  • Compact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail design
  • IP30 metal case
  • Supports -40 to 75 degrees C operating temperature
  • Supports ESD 8KV DC Ethernet protection
  • Dual power input design
    • 48V~56V DC wide power input with reverse polarity protection
    • 3-pin terminal block or DC jack connector

Switching

  • Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 8K MAC address table size
  • 10K jumbo frame
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol

Layer 2 Features

  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
    • Protocol VLAN
    • Voice VLAN
    • Private VLAN (Protected port)
    • Management VLAN
    • GVRP
  • Supports Spanning Tree Protocol
    • STP (Spanning Tree Protocol)
    • RSTP (Rapid Spanning Tree Protocol)
    • MSTP (Multiple Spanning Tree Protocol)
    • STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  • Supports Link Aggregation
    • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
  • Provides port mirror (many-to-1)
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)

Quality of Service

  • Ingress/Egress Rate Limit per port bandwidth control
  • Traffic classification
    • IEEE 802.1p CoS
    • TOS/DSCP/IP precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast

  • Supports IPv4 IGMP snooping v2, v3
  • Supports IPv6 MLD snooping v1, v2
  • IGMP querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering

Security

  • Storm Control support
    • Broadcast/Unknown unicast/Unknown multicast
  • Authentication
    • IEEE 802.1X port-based network access authentication
    • Built-in RADIUS client to cooperate with the RADIUS servers
    • DHCP Option 82
    • RADIUS/TACACS+ authentication
  • Access Control List
    • IPv4/IPv6 IP-based ACL
    • IPv4/IPv6 IP-based ACE
    • MAC-based ACL
    • MAC-based ACE
  • MAC Security
    • Static MAC
    • MAC filtering
  • Port security for source MAC address entries filtering
  • DHCP snooping to filter distrusted DHCP messages
  • Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
  • IP source guard prevents IP spoofing attacks
  • DoS attack prevention

Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interface
    • Web switch management
    • Telnet Command Line Interface
    • SNMP v1 and v2c switch management
    • SSHv2, TLSv1.2 and SNMP v3 secure access
  • SNMP Management
    • SNMP trap for interface Link Up and Link Down notification
    • Four RMON groups (history, statistics, alarms and events)
  • User privilege levels control
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • Static and DHCP for IP address assignment
  • System Maintenance
    • Firmware upload/download via HTTP/TFTP
    • Configuration upload/download through HTTP/TFTP
    • Dual images
    • Hardware reset button for system reboot or reset to factory default
  • SNTP Network Time Protocol
  • Network Diagnostic
    • Cable diagnostics
    • ICMPv6/ICMPv4 Remote Ping
    • SFP-DDM (Digital Diagnostic Monitor)
  • Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
  • Event message logging to remote syslog server
  • PLANET Smart Discovery Utility for deployment management
  • PLANET NMS system and CloudViewer for deployment management
