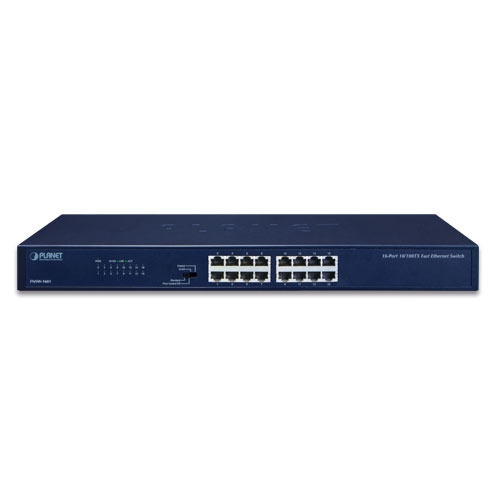

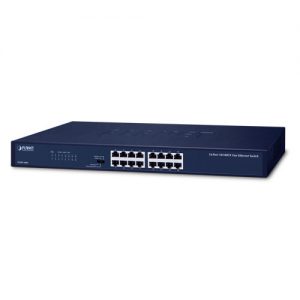

16-Port 10/100BASE-TX Fast Ethernet Switch

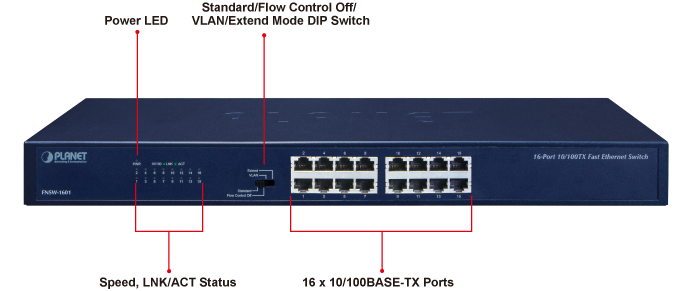

Physical Port

    • 16 10/100BASE-TX Fast Ethernet ports
    • Supports auto MDI/MDI-X function

Layer 2 Features

    • Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standards
    • Features Store-and-Forward mode with wire-speed filtering and  forwarding rates
    • Integrated address look-up engine, supporting 8K absolute MAC addresses
    • Power saving ability for Green networking
    • IEEE 802.1Q VLAN packet transparency support
    • IEEE 802.3x flow control for full-duplex operation and back pressure for half-duplex operation
    • Hardware-based 10/100BASE-TX, half/full duplex, flow control and auto-negotiation
    • Automatic address learning and address aging
    • Supports CSMA/CD protocol

Hardware Features

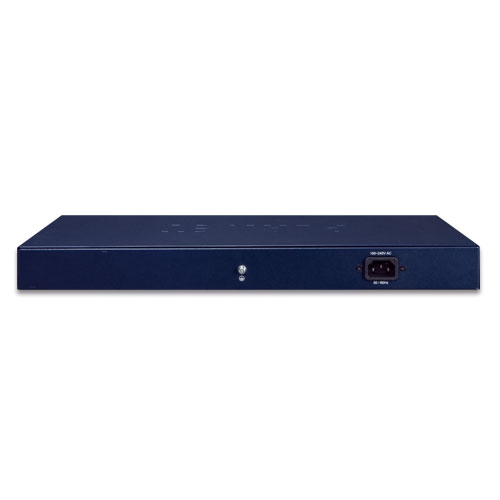

    • 100~240V AC, 0.2A, 50~60Hz universal power input
    • DIP switch for standard/flow control off/VLAN/Extend mode selection
    • FCC, CE class A compliant
