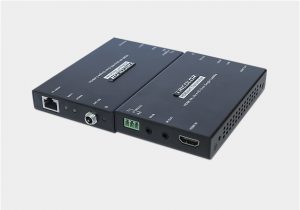

The HDBT Series are set of transmitters and receivers that provide a cost-effective way to extend digital signals. It supports video signals up to 4K resolution, including 1080P/60 dark and 3D video. HDBaseT technology enables the reliable transmission of digital signals and supports up to 12-bit color depth, CEC pass-through and embedded HD anti-loss audio formats. Additionally, it maintains continuous EDID and HDCP DDC communication between the signal source and display, ensuring optimum compatibility and stable signal transmission between devices. To improve the ease of installation, the HDBT Series Transmitter and Receiver are both portable and can be concealed behind a desk or a small display. The HDBT series transmitter can be connected to the power supply on either the transmistter or receiver and it will remotely power the other end.


  • Supported HDBaseTLite technology
  • Support for 480P to 4K/2k and support for 3D video
  • Customizable output resolution for each channel
  • Input channel EDID update configuration
  • Automatic protection in the event of power disruption
  • Bidirectional IR and RS232 control functions
  • Support POC two way power supply, either transceiver and receiver can be connected to power
