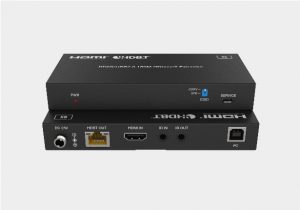

HDBT-KVM

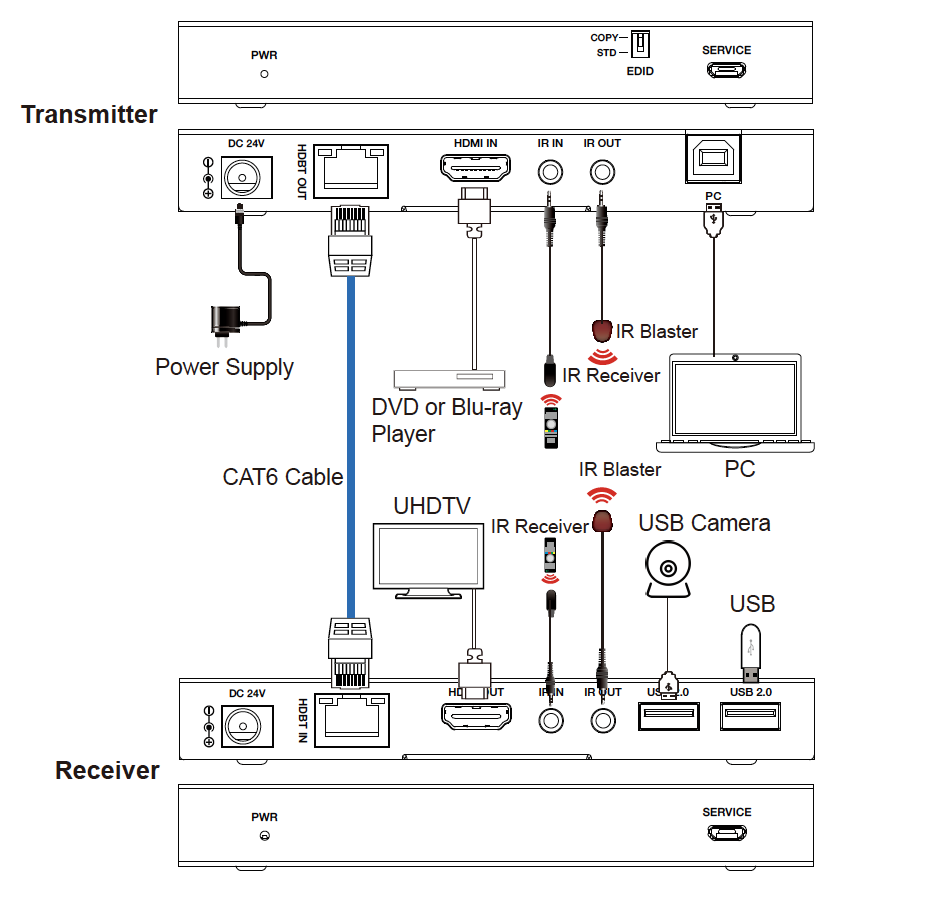

This 18Gbps HDBaseT Extender can extend HDMI signal, bi-directional IR control signal and USB KVM signal to a distance up to 150m via a single CAT6 cable. This product converts HDMI signal to standard HDBaseT signal and transmits it through LAN cable. It can easily control signal source device or display device from the remote end through bi-directional IR signal pass- through function. Video resolution up to 4K2K@60Hz YUV 4:4:4. It also supports USB 2.0 transmission and POC function.

Feature

  • HDMI 2.0b and HDCP 2.2 compliant
  • Support 18Gbps video bandwidth
  • Support video resolution up to 4K2K@60Hz YUV 4:4:4
  • Support bi-directional IR signal and USB KVM signal pass-through
  • Support bi-directional POC (Power over Cable) function
  • Support USB 2.0 transmission
  • EDID management
  • Compact design for easy and flexible installation
  • Up to 150 meter transmission distance
