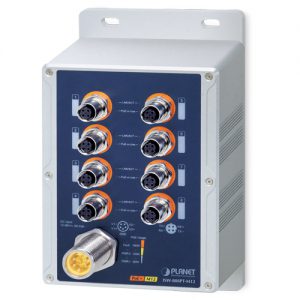

ISW-808PT-M12

Industrial IP67 8-Port 10/100TX M12 802.3at PoE+ Switch

Physical Port

  • 8-port 10/100BASE-TX with waterproof/dustproof M12 connectors and IEEE 802.3at PoE+ injector function

Power over Ethernet

  • Its end-span PSE complies with IEEE 802.3at Power over Ethernet Plus.
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • 180-watt PoE budget
  • Supports PoE power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters

Layer 2 Features

  • Supports auto-negotiation and 10/100Mbps half/full duplex mode
  • High-performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • Backplane (switching fabric): 1.6Gbps
  • Integrated address look-up engine, supporting 2K absolute MAC addresses
  • Automatic address learning and address aging
  • CSMA/CD Protocol

Industrial Case and Installation

  • IP67 aluminum case
  • Waterproof/dustproof and fanless designs
  • DIN-rail and wall-mount installation
  • Redundant power design
  • – 12 to 56V DC, redundant power with reverse polarity protection
    – Active-active redundant power failure protection
    – Backup of catastrophic power failure on one supply
    – Fault tolerance and resilience
  • Supports 6KV DC Ethernet ESD protection
  • Supports 6KV surge protection
  • -40 to 75 degrees C operating temperature

Dimension
