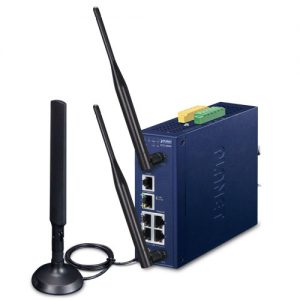

Industrial LoRaWAN Wireless Gateway with 5-Port 10/100/1000T



    • Supports EU868, US915, AS923 (Sub 1G)
    • 8 programmable parallel demodulation paths
    • 2 x DI/DO and 1 serial port (RS485) for Modbus applications
    • Complies with IEEE 802.11ax and IEEE 802.11a/b/g/n/ac standards
    • SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
    • Stateful packet inspection (SPI) firewall and content filtering
    • Blocks DoS/DDOS attack, port range forwarding
    • Planet NMS controller system and CloudViewer app supported
    • -45 to 75 degrees C operating temperature; DIN-rail and fanless designs


    • 4 x 10/100/1000BASE-T RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X
    • 1 x 10/100/1000BASE-T RJ45 WAN port, auto-negotiation, auto MDI/MDI-X
    • 1 x LoRa antenna
    • 2 x dual band WiFi antennas
    • 1 x serial console port (RS485)
    • 1 x reset button

LoRa Interface

    • Supports EU868/AU915/US915/AS923(Sub 1G)
    • 8 programmable parallel demodulation paths

RF Interface Characteristics

    • Features 2.4GHz (802.11b/g/n/ax) and 5GHz (802.11a/n/ac/ax) dual band for carrying high load traffic
    • 2T2R MIMO technology for enhanced throughput and coverage
    • Provides multiple adjustable transmit power control
    • High speed up to 1.8Gbps (600Mbps for 2.4GHz or 1200Mbps for 5GHz) wireless data rate

IP Routing Feature

    • Static route
    • Dynamic route
    • OSPF

Firewall Security

    • Cybersecurity
    • Stateful Packet Inspection (SPI) firewall
    • Blocks DoS/DDoS attack
    • Content filtering
    • MAC filtering and IP filtering
    • NAT ALGs (Application Layer Gateway)
    • Blocks SYN/ICMP flooding

VPN Features

    • IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
    • Max. Connection Tunnel Entries: 60 VPN tunnels,
    • Encryption methods: DES, 3DES, AES, AES-128/192/256
    • Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512


    • Outbound load balancing
    • Failover for dual-WAN
    • Static IP/PPPoE/DHCP client for WAN
    • DHCP server/NTP client for LAN
    • Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
    • Port forwarding; QoS; DMZ; IGMP; UPnP; SNMPv1,v2c, v3
    • MAC address clone
    • DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP


    • Setup wizard
    • Dashboard for real-time system overview
    • Supported access by HTTP or HTTPS
    • Auto reboot
    • PLANET NMS System and Smart Discovery Utility for deployment management
    • Planet CloudViewer app for real-time monitoring
