TCO

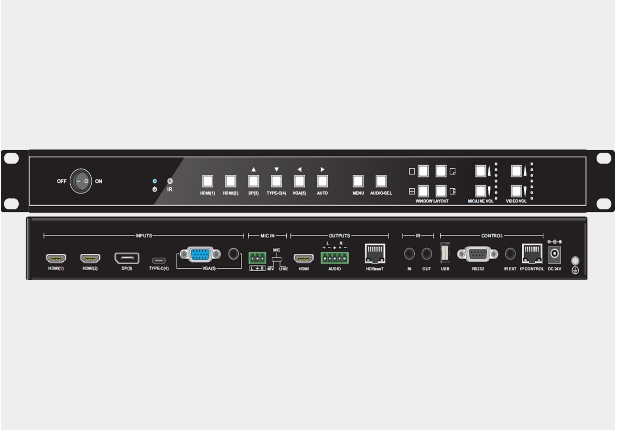

TCO is a 5×1 4K Seamless Presentation Scaler Switcher with Multi-viewer,  with 2 HDMI,  1 DP,  1 Type C,  1 VGA inputs,  max. input resolution Support upto 3840*2160@30 4:4:4,  while HDCP2.2 and  below compatible. Outputs have 1 HDBaseT and  1 local HDMI loop out,  Or optional to be 1 MPO optical with 1 HDMI Loop out,  Output resolution for output is scalable,  with Max. output resolution to be 3840*2160@30 4:4:4.

TCO is integrated with the functions of multi-view,  4K seamless switching,  scaler output,  switching effect present,  48V Mic,  Line input,  Audio embed & De-embed,  background audio adjustable,  Mic volume adjust,  BGM with Mic embed audio output,  Stereo\mono switching,  balanced audio interface. It is your prefect multifunctional presentation switcher for mid-size conference room solution.

Datasheet
Manual
Firmware

Feature

  • Support   Multiview mode with 5 pictures,  4pictures,  PIP,  Single picture full screen display.
  • Support   4K Scaler input & Output
  • Support   seamless switching with switch effects (Fade in/out,  Fast switching)
  • Input Support  2 HDMI,  1 DP with audio embed,  1 Type C,  1 VGA inputs with audio embed
  • Input resolution upto 3840*2160@30 444,  Downward compatible
  • Input HDCP Support  HDCP2.2,  Downward compatible
  • Support  auto switch input EDID from output EDID
  • Output port Support 1 HDBT(Support POC 24V) or 1 MPO optical port, with 1 HDMI loop out
  • Output resolution Max. 3840*2160@30 444 Support Scaler multiple resolution Output or auto setting
  • Ethernet cable Output port HDBaseT 4K transmit upto 40m , 1080P transmit 70m; MPO Optical cable Output port MPO 4K transmit 300m
  • Support video auto switching manually or automatically. (1)  Support  RS232, IR, TCP/IP, front panel buttons control
  • Support  B/S GU Iinterface;
  • Support  far-end RS232 control main device, main device RS232 control far-end device
  • Support  TCP/IP firmware upgrade
  • Support  Power-off memory function
