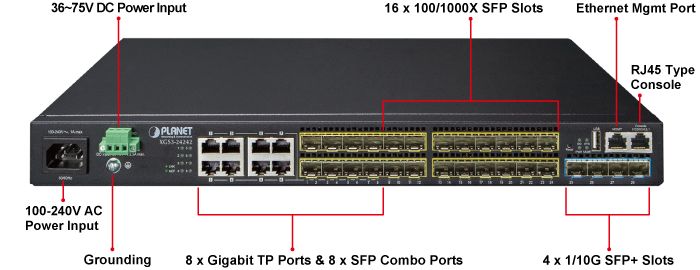

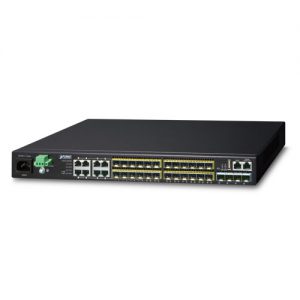

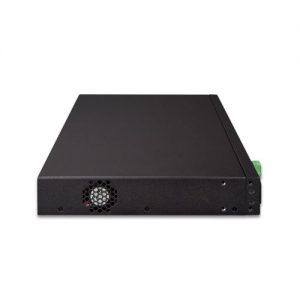

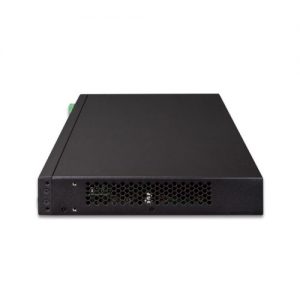

Layer 3 24-Port 100/1000X SFP + 8-Port Shared TP + 4-Port 10G SFP+ Stackable Managed Switch (100~240V AC, 36-75V DC)



  • 24 100/1000BASE-X mini-GBIC/SFP ports
  • Eight 10/100/1000BASE-T RJ45 copper ports, shared with Port-1 to Port-8
  • 4 10GBASE-SR/LR SFP+ ports, compatible with 1000BASE-SX/LX/BX SFP
  • RJ45 to DB9 console interface for switch basic management and setup
  • 1 USB2.0 interface for configuration and firmware storage
  • Virtualized multiple XGS3-24242 into one logical device
  • Connects with stack member via assigned 10G SFP+ interfaces
  • Single IP address stack management, supporting up to 4 hardware units stacked together
  • Stacking architecture supports redundant ring mode
  • IP routing protocol supports RIPv1/v2, RIPng, OSPFv2/v3, BGP4/4+
  • Routing interface provides per VLAN routing mode
  • VRRPv1/v3 protocol for redundant routing deployment
  • Supports route redistribution
  • Supports hardware-based wire-speed VLAN routing
