Industrial 1-Port 10/100/1000T + 1-Port 100/1000/2500X SFP Managed Media Converter


Physical Port

    • 1 10/100/1000BASE-T Gigabit Ethernet RJ45 port
    • 1 100/1000/2500BASE-X SFP port for SFP type auto detection

Industrial Protocol

    • Modbus TCP for real-time monitoring in the SCADA system
    • IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode

Industrial Case and Installation

    • IP30 metal  case
    • DIN-rail or wall-mount design

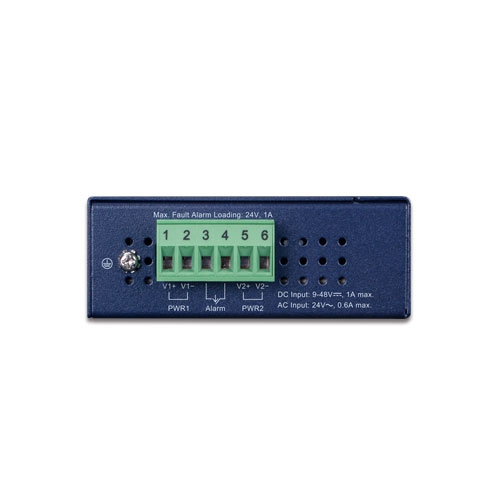

    • 24V AC, 9~48V DC, redundant power with reverse polarity protection
    • Supports 6KV DC Ethernet ESD protection
    • -40 to 75 degrees C operating temperature

Layer 3 IP Routing Features

    • Supports maximum 32 static routes and route summarization
    • Routing interface provides per VLAN routing mode

Layer 2 Features

    • Storm Control support
      • Broadcast/Multicast/Unicast
    • Supports VLAN
      • IEEE 802.1Q tagged VLAN
      • Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
      • Private VLAN Edge (PVE)
      • Port Isolation
      • MAC-based VLAN
      • IP Subnet-based VLAN
      • Protocol-based VLAN
      • VLAN Translation
      • Voice VLAN
      • GVRP
    • Supports Spanning Tree Protocol
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
    • BPDU Filtering/BPDU Guard
    • Provides port mirror (many-to-1)
    • Port mirroring to monitor the incoming or outgoing traffic on a particular port
    • Loop protection to avoid broadcast loops
    • Supports ERPS (Ethernet Ring Protection Switching)
    • Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
    • Link Layer Discovery Protocol (LLDP)
    • IEEE 802.3ah OAM
