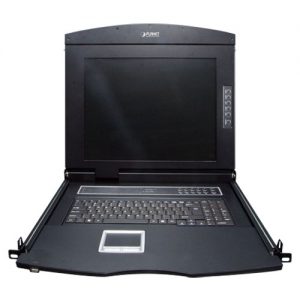

17″ 16-Port Combo VGA LCD IP KVM Switch



  • Integrated 17″ LCD monitor and keyboard/touchpad module within 1U chassis
  • Standalone machine controls up to 16 sets of computers
  • Up to 2 levels can be cascaded and up to 256 computers can be controlled.
  • Port Select Panel status LEDs give a clear indication of the active computers
  • Mouse touch board with two function buttons
  • Full-size 100-key keyboard with integrated number pad
  • Front panel with lock to prevent damage by accident


  • Two-layer password security protection
  • DES, AES and 3DES for data encryption


  • Auto scan mode for monitoring computers
  • Requires no additional software or hardware
  • Computer selection via Port Select Button, Hotkey and On Screen Display (OSD)
  • Hot pluggable: Add or remove computers without having to power down the switch
  • QVS (Quick View Setting): Quickly select your computer by naming its model or serial number

Remote Access

  • Remotely control PC via TCP/IP and a built-in 10/100/1000Mbps Ethernet port
  • High Video Quality: Resolution up to 1280 x 1024 (local side) or 1920 x 1080 (remote side)
  • Sends the key combinations to a remote computer
  • Administrator and multiple users with password protection
  • Use of the absolute synchronistical technology of mouse to ensure the accuracy of the Windows operating system
  • Expedient bandwidth control


  • Multiplatform support — Windows, Linux and Sun
  • Multibrowser support (IE, Chrome, Firefox)
  • Supports Microsoft Intellimouse, Logitech Net Mouse and all other third-party’s PS/2 mice
