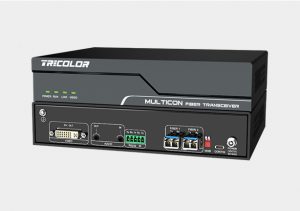

The Multicon-M5 Series Fiber Optic Transmitter allows high-resolution video, audio and RS-232 control signals to be transmitted using a single set of fiber optic cables over distances of up to 10 kilometers. Designed for reliable transmission of high-resolution images, Tricolor zero-compression, all-digital technology provides perfect pixel-to-point transmissions of audio and video images with resolutions of up to 1920×1200 @ 60 Hz while also supporting embedded audio and analog audio integrated transmission. Selected models also support the transmission of signals through the H.264 / H.265 codec while transmitting over optical fiber which allows for an optical network backup.


  • Supports video signal input with resolutions up to 1920 x 1200@ 60 Hz along with backwards compatibility with other resolutions all while supporting video signal loop-through output
  • TRS (3.5 mm) audio signals captured and transmitted simultaneously with video while supporting audio loopback
  • Optical signal output, LC interface, maximum transmission distance 10 km
  • RS232 serial port, IR signal transparent transmission to the Receiver
  • Reverse output of audio signals relayed from the receiver
  • Selected models support signal dual-optical backup output for dual-optical backup of signals
  • Selected models support network coding, configuration and online management, signals through H.264/ H.265 encoding output and provide network signal backup
  • Selected models support network coding, online configuration and management, dual-optical backup signal output and output through H.264 / H.265 encoding to achieve optical network signal backup
  • Supports modifications to the EDID mode of the video input interface
  • Device firmware upgrades are available via Mini-USB port
